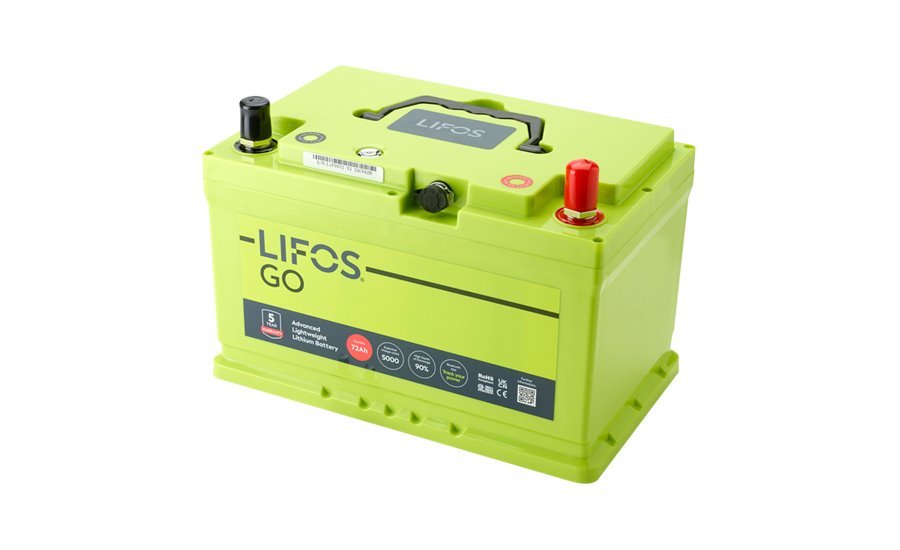

Lifos Go 72Ah Lithium Iron Phosphate Battery

Specially designed to fit underneath the driver's seat of a VW T5 and T6, Lifos Go 72 is the ideal leisure battery for a campervan where space and weight is at a premium. Lifos Go 72 is a direct drop in exchange for a lead acid battery with the advantages of smaller size, lower weight and longer life. A Bluetooth app shows the battery performance on a smartphone or tablet plus there is a button to turn off the BMS when the battery is not in use to prevent self-discharge.

Buy Lifos Go batteries

Product Overview

Lifos Go 72 delivers a massive 2750 cycles  (a cycle is considered a full charge and discharge) at 90% depth of discharge, ensuing that 64.8Ah of usable power is available. Compare this to a lead acid battery with a typical 50% DOD and it's clear that a 130Ah gross capacity will be needed to replicate the power of Lifos 72. And yet, Lifos is a third smaller in size and a quarter the weight. Its huge 2750 cycles (at 90% DOD) jumps to an even more impressive 3500 cycles at 75% DOD – that’s nearly 10 years of trouble free operation.

Lifos Go 72 can be connected with four batteries in series or parallel if a power bank is needed and each battery's internal BMS ensures all the lithium cells are perfectly balanced to give outstanding and reliable performance.

Fitted with a Bluetooth app, you can keep abreast of the vital information at all times when connected to an Android or Apple smart device. Information such as current, voltage, power (w) and state of charge can be interrogated at any time and the smart operating system will even send you a warning well before the battery gets to a low state of discharge giving plenty of time to get it recharged.

Lifos Go 72 is supplied with a five year warranty and ECE regulation R10 certification.

Lifos Go 72Ah lithium iron phosphate battery

Features

Long life

Lightweight & compact design

Fast charging

Free Bluetooth App

Built-in battery management system (BMS)

Removable connection posts

Expert support

5-Year product warranty

Technical Specification

Electrical Specifications
Nominal Voltage 12.8v
Nominal Capacity 72Ah
Energy 921.6Wh
Resistance <10mΩ
Efficiency >90%
Self Discharge <3% per month
Maximum Batteries in series 4
Maximum Batteries in parallel 4



Mechanical Specifications
Dimensions inc Terminals 299.6 x 179 x 188mm
Weight 10.4Kg
Terminal Type Threaded insert M8
Case Material ABS + PC UL94V-0
IP Rating (enclosure) IP65
Cell Type (Chem) LifePO4



Charge Specifications
Recommended charge current 15A - 20A
Maximum Charge Current 70A
 BMS charge current cut of  >75A
Recommended Charge Voltage 14.4v - 14.6v
BMA Charge Voltage Cut OFF 3.75v+/- 0.025v/cell



Composition Information
Max Continuous Discharge Current <80A
Peak Discharge Current 210A (6 seconds)
PCM Discharge Current Cut Off 120A +/- 5A
PCM High Temperature Cut Off 50ºC charge /60ºC Discharge
Low Voltage Disconnect >11.2v
Reconnect Voltage >12v
 Short circuit protection   >700A



Temperature Specifications
Discharge Temperature -20~60ºC
Charge Temperature 0~50ºC
Storage Temperature -20~40ºC
BMS High Temperature Cut-Off 85ºC +/- 5ºC



Compliance Specifications
Certifications

CE
ROHS, UN38.3
ECE regulation R10

Shipping Classification MSDS Class 9
UN3480
